Deep groove ball bearings are the most widely used bearing type and are particularly versatile. They have low friction and are optimized for low noise and low vibration which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than other bearing types.
Angular contact ball bearings have inner and outer ring raceways that are displaced relative to each other in the direction of the bearing axis. This means that these bearings are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.
Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are available open or sealed. The bearings are insensitive to angular misalignment of the shaft relative to the housing (fig. 1), which can be caused, for example, by shaft deflection.
Thrust ball bearings are manufactured as single direction (fig. 1) or double direction (fig. 2) thrust ball bearings. They are designed to accommodate axial loads only and must not be subjected to any radial load.
Spherical roller bearings, whose high load carrying capacity and ability to accommodate misalignment help you obtain low maintenance costs and long bearing service life. Spherical roller bearings designed for many applications, including wind turbine main shafts, continuous casters, vibratory applications and high-speed applications
The bearings can meet the challenges of applications faced with heavy radial loads and high speeds. Accommodating axial displacement (except for bearings with flanges on both the inner and outer rings), they offer high stiffness, low friction and long service life.
Tapered roller bearings feature a cup and cone assembly. The cup is comprised of the outer ring and the cone assembly consists of inner ring, rollers, and cage. This bearing construction accommodates combined loads and provides low friction during operation. By adjusting one single row tapered roller bearing against a second tapered roller bearing and applying a preload, a rigid bearing application can be achieved.
Needle roller bearings are bearings with cylindrical rollers that are small in diameter relative to their length. The modified roller/raceway profile prevents stress peaks to extend bearing service life.

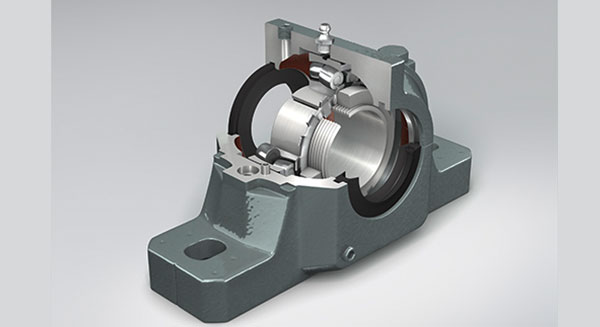

To ensure effective sealing, plummer blocks are available with a variety of special sealing options and end covers. Benefits include a facility for easy mounting and dismounting of pre-assembled shafts.
Ball bearing units consist of an insert bearing mounted in a housing. An insert bearing is a deep groove ball bearing with a sphered (convex) outside surface and an extended inner ring that includes a mechanism to lock the unit onto the shaft. The housings have a correspondingly sphered but concave bore.
Super-precision bearings are ideal for machine tools and other precision applications such as rolling mills, racing cars and marine vessels. The bearings also minimize noise, vibration and heat generation.
An actuator converts energy, which may be electric, hydraulic, pneumatic, etc., to mechanical in such a way that it can be controlled. The quantity and the nature of input depend on the kind of energy to be converted and the function of the actuator. Electric and piezoelectric actuators, for instance, work on the input of electric current or voltage, for hydraulic actuators, its incompressible liquid, and for pneumatic actuators, the input is air. The output is always mechanical energy.
Used for flow regulation in large pipe diameters in which the disc takes the form of disk. Operation is similar to that of a ball valve. A plate or disc is positioned in the center of the pipe. The disc has a rod passing through it that is connected to an actuator on the outside of the valve. Rotating the actuator turns the disc either parallel or perpendicular to the flow. Unlike a ball valve, the disc is always present within the flow, therefore a pressure drop is always induced in the flow, regardless of valve position.
Ball valves use a metal ball with a hole bored through the center, sandwiched between two seats to control flow. Used in many hydrocarbon process applications, ball valves are capable of throttling gases and vapors and are especially useful for low-flow situations.
A safety valve is a valve that acts as a fail-safe. An example of safety valve is a pressure relief valve (PRV), which automatically releases a substance from a boiler, pressure vessel, or other system, when the pressure or temperature exceeds preset limits.

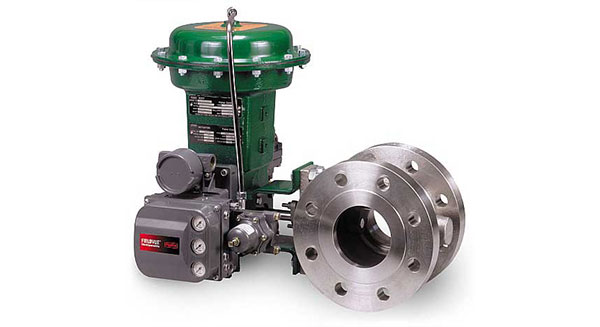

The control valve is a critical part of the control loop. The control valve manipulates a flowing fluid, such as gas, steam, water, or chemical compounds to compensate for the load disturbance and keeps the regulated process variable as close as possible to the desired set point.
Pressure reducing valves (PRV) lower the downstream pressure to match the setpoint, opening as the pressure falls and closing as it rises. These mechanical valves employ a spring against a diaphragm or piston as the control element which makes them simple and reliable in operation.
Pressure Reducing Station (TPRS) is a prefabricated ready to assemble module comprises of control valves, isolation valves, pipes and fittings intended to reduce steam pressure to designed conditions.

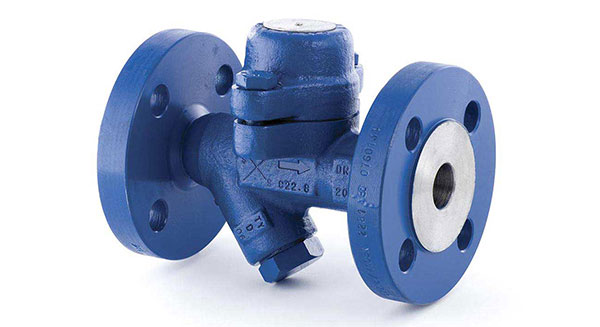

A steam trap is a device used to discharge condensates and non-condensable gases with a negligible consumption or loss of live steam. Steam traps are nothing more than automatic valves.
A Bellow Sealed Valve is a industrial process valve designed to eliminate valve leakage and are also known as ‘Zero Leak Valve’ or ‘Emission Free Valve. The bellows cartridge component, welded to the valve stem and bonnet. During the valve stroke the bellows compress or expand along with the sliding stem’s linear motion with little to no friction.
The inside of a piston valve contains a piston that blocks the output when the valve is pressurized, and a volume of air behind the piston. When the pressure behind the piston is released the piston is pushed back by the force of the pressure from the input.
A pressure gauge is a fluid intensity measurement device. Pressure gauges are required for the set-up and tuning of fluid power machines, and are indispensable in troubleshooting them.
A differential pressure gauge is a visual indicator, designed to measure and illustrate the difference between two pressure points within a process system. Without this differential pressure gauge, an operator or control system would need to watch two separate gauges and determine the difference in readings.
A thermocompressor is a steam control device that uses high-pressure steam (motive steam) to induce flow from a lower pressure steam source (suction steam) and discharge the mixture at an intermediate pressure. The high pressure is used to create a high velocity jet that mixes with and accelerates the suction steam.
The temperature gauge utilizes a sensor, located near or in the thermostat housing, to send an electrical signal through the vehicle’s internal computer corresponding to the specific coolant temperature, giving the gauge on your dashboard an accurate reading of the temperature.
